Compare
the pathological image-left and the physiological image-right
(blinded)
<<
F:

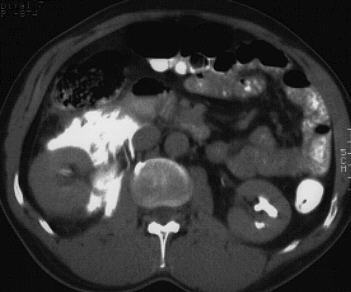

CT
abdomen after contrast (about 10 min after contrast application): Notice
the contrast-enhanced tissue
next to the right kidney
H:
Adult
man, 65-years-old, road traffic accident with pain in the right flank.
INFO/WWW-LINKS:
Renal injury may be mild as contusion with cortical lacerations - but there
is no injury to the collecting system. In major injuries to the kidney you
find damage to the collecting system with cortical laceration. In some rare
cases there are shattered kidneys, and/or pedicle injuries with renal artery
avulsion combined with pelviureteric junction avulsion
D:
Renal
contusion and pelviureteric junction avulsion with injury to the renal pelvis
causing contrast in the perirenal tissue.
IN
THIS PART OF THE PAGE YOU FIND SOME TEXT FIELDS WHICH CAN BE OPENED EIGTHER
STEP BY STEP (CLICK ON "HISTORY", "HELP", "FINDINGS",
"DIAGNOSIS" OR "INFO/WWW-LINKS") OR AT ONCE WITH A CLICK
ON "ALL ON" - VICE VERSA CLICK ON "ALL OFF".
It is not
easy to find an exactly corresponding slice to every pathological example!
For that reason the
FILM
(2)
is
recommended!
Once opened you may use it for every pathological example.
If you need a physiological
image to compare click here
