Compare
the pathological image-left and the physiological image-right
(blinded)
<<
F:

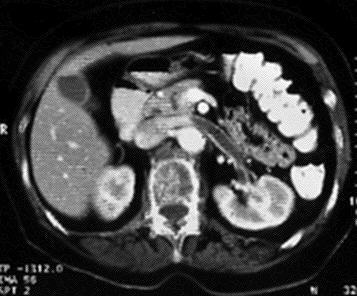

There
is filling defect
in the left
renal vein
H:
Adult
woman, 65-years-old, with nephrotic syndrome caused by membranous glomerulonephitis
(GN)
INFO/WWW-LINKS:
Risk factors of DVT (deep venous thrombosis) or thrombosis of the IVC / V.
iliaca comm. are age, pregnancy, estrogen drugs, surgery (especially pelvic
surgery) previous DVT, malignancy, obesity and immobility. Renal vein thrombosis
occurs in about 20% of those patients with nephrosis, 30% with membranous
GN and children with acute dehydration.
D:
Renal vein
thrombosis
IN
THIS PART OF THE PAGE YOU FIND SOME TEXT FIELDS WHICH CAN BE OPENED EIGTHER
STEP BY STEP (CLICK ON "HISTORY", "HELP", "FINDINGS",
"DIAGNOSIS" OR "INFO/WWW-LINKS") OR AT ONCE WITH A CLICK
ON "ALL ON" - VICE VERSA CLICK ON "ALL OFF".
It is not
easy to find an exactly corresponding slice to every pathological example!
For that reason the
FILM
(2)
is
recommended!
Once opened you may use it for every pathological example.

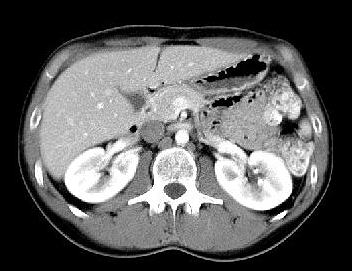

If you need a physiological
image to compare click here
