Compare
the pathological image-left and the physiological image-right
(blinded)
<<
F:
Recognize

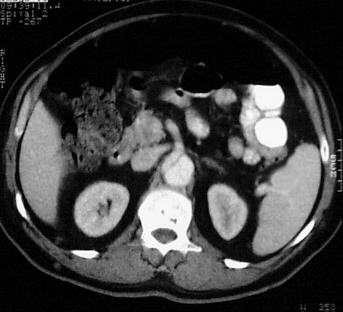

two contrast-filled lumens of the abdominal aorta - these lumens are divided
by an intimal flap.
H:
Adult
man, 51-years-old, pain in the back.
INFO/WWW-LINKS:
Dissection ot lower thoracic and abdominal aorta. Splenic
metastasis from the known rectal carcinoma General information: In dissecting
thoracic/abdominal aortic aneurysms blood splits the aortic media, caused
by cystic media degeneration of the artery. Sudden onset of tearing chest
and/or abdominal pain radiating to the back. As dissection advances, branches
of the aorta may occlude leading sequentially to hemiplegia (caused by occlusion
of the carotid artery and cerebral infarction), unequal arm puls and blood
pressure (occlusion of the subclavian artery), paraplegia (occlusion of the
anterior spinal artery) and anuria (occlusion of the renal arteries).
D:
Dissection
ot lower thoracic and abdominal aorta.
IN
THIS PART OF THE PAGE YOU FIND SOME TEXT FIELDS WHICH CAN BE OPENED EIGTHER
STEP BY STEP (CLICK ON "HISTORY", "HELP", "FINDINGS",
"DIAGNOSIS" OR "INFO/WWW-LINKS") OR AT ONCE WITH A CLICK
ON "ALL ON" - VICE VERSA CLICK ON "ALL OFF".
It is not
easy to find an exactly corresponding slice to every pathological example!
For that reason the
FILM
(2)
is
recommended!
Once opened you may use it for every pathological example.
If you need a physiological
image to compare click here
